Product details

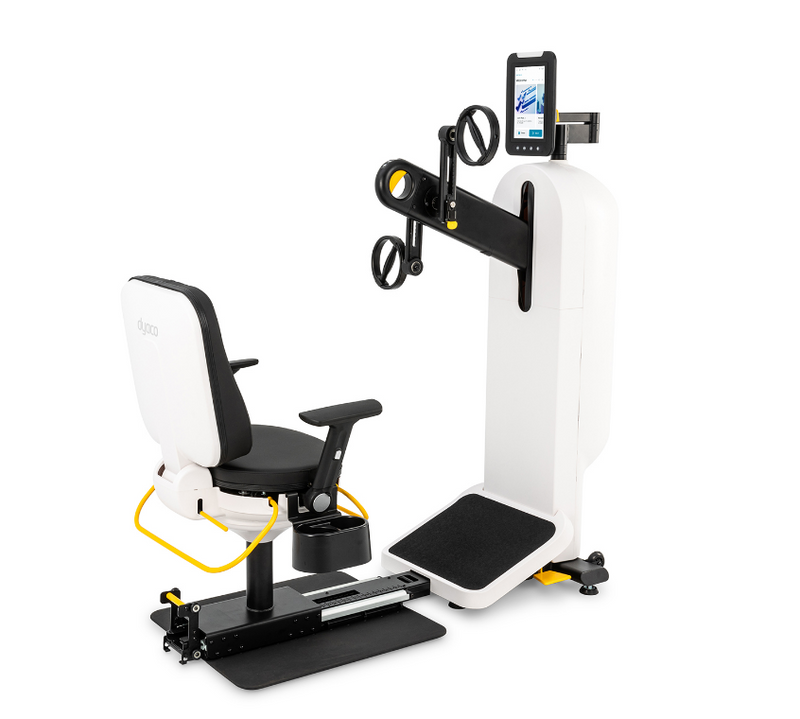

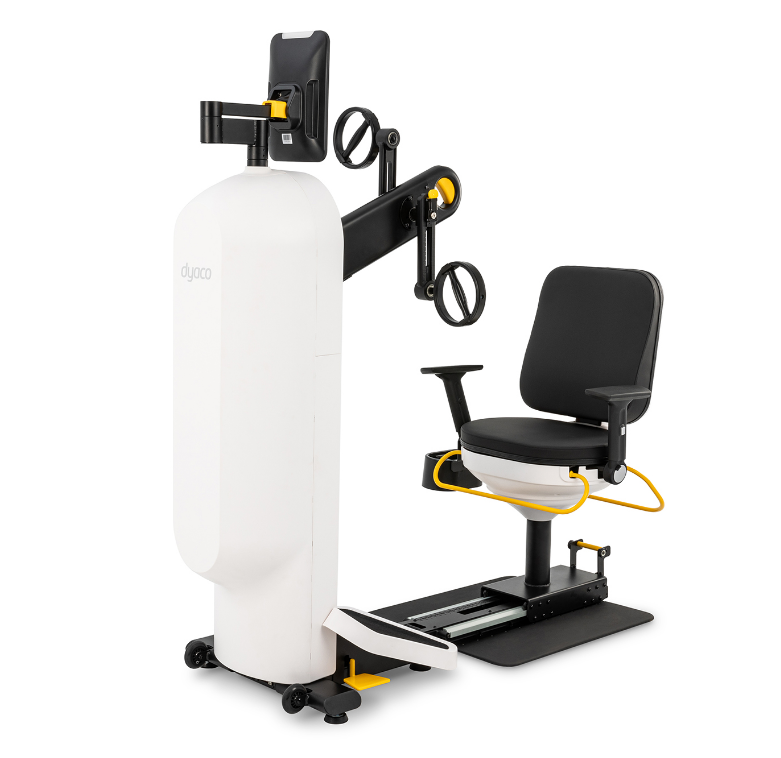

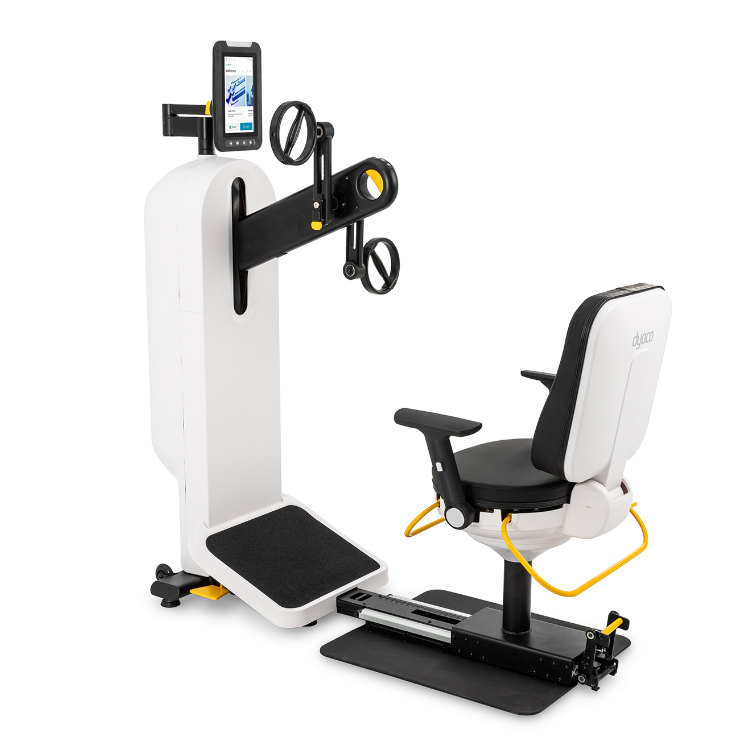

DYACO MEDICAL REHABILITATION UBE UPPER BODY ERGOMETER SERIES 8.5UE.
The Dyaco Medical Rehabilitation UBE Upper Body Ergometer 8.5UE has thoughtfully be designed with the end user in mind. Because Dyaco Medical appreciate that the 8.5UE is going to be used by patients with various ranges of motion, capabilities and physical therapy requirements, it offers a very low starting resistance. This guarantees a gentle and low impact movement for the upper limbs, arms and shoulders. In addition the 8.5UE has an Adjustable Crank Length that can be tailored to meet each patients specific range of motion requirements. Further adjustments to meet patients needs include Arm Height Adjustment that the therapist can facilitate with the foot pedals located either side of the machine and the hand grips rotate to swivel naturally in accordance with the patients wrist movement. The Multi Function Handle also features an arm height adjustment lever for added convenience, streamlining the adjustment process for optimal convenience. It also has remote shortcut keys for console operation. The 8.5UE Bi-Directional Resistance is a unique feature of Dyaco Medical equipment. This function allows for arm rotation in both forward and reverse directions, under a smooth magnetic resistance, for greater muscle and joint involvement. The 8.5UE comes furnished with a 10" touch panel console, providing direct access to the Dyaco Insight Cloud computing platform for data analytics. The Beacon, positioned on top of the console, employs vividly coloured lights to assess exercise intensity and offer physical therapists an immediate visual cue regarding their patients' advancement. The broad connection, wireless capabilities, multiple access login, and real-time streaming data transfer are all integrated features designed to amplify therapists' productivity and support patients' rehabilitation outcomes. Finally the seat can easily be removed to accommodate patients in wheelchairs making the Dyaco Medical Rehabilitation UBE Upper Body Ergometer 8.5UE an adaptable, user centric machine providing a comprehensive solution for enhancing upper limb, arm and shoulder therapy.
Product Features
- Fully adjustable and removable seat for easy wheelchair access.
- Designed for upper limb, arms and shoulder therapy
- Adjustable Crank Arm Length
- Arm Height Adjustment
- Seat adjust horizontally to accommodate different size users
- Magnetic resistance
- Bi-Direction Arm Rotation (Forward and reverse rotation under resistance)
- 1-50 Resistance Levels
- 5-1000 Watt Workload range
- Step through design

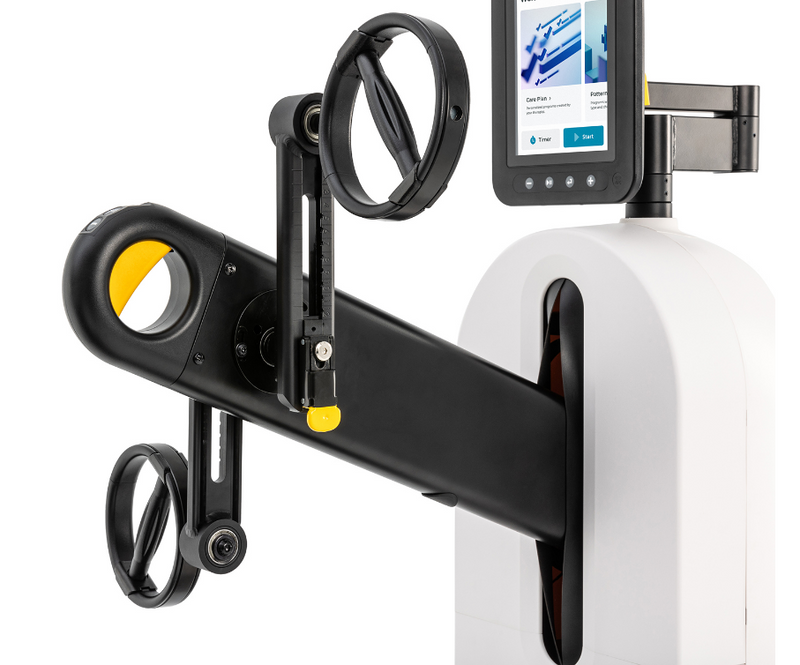

- Rotating multi grip handles that follow the natural wrist movements of the user
- 25.5cm (10") Touch screen console with data download capabilities
- Beacon on console shows a visual cue to patients advancement
- Console on 360 degree Articulating Arm
- Transport wheels
- Telemetric heart monitoring with optional chest strap
- User Weight 31.5 Stone (200kg)
- Warranty 2 years parts and labour
Console, Programmes and Feedback
Console

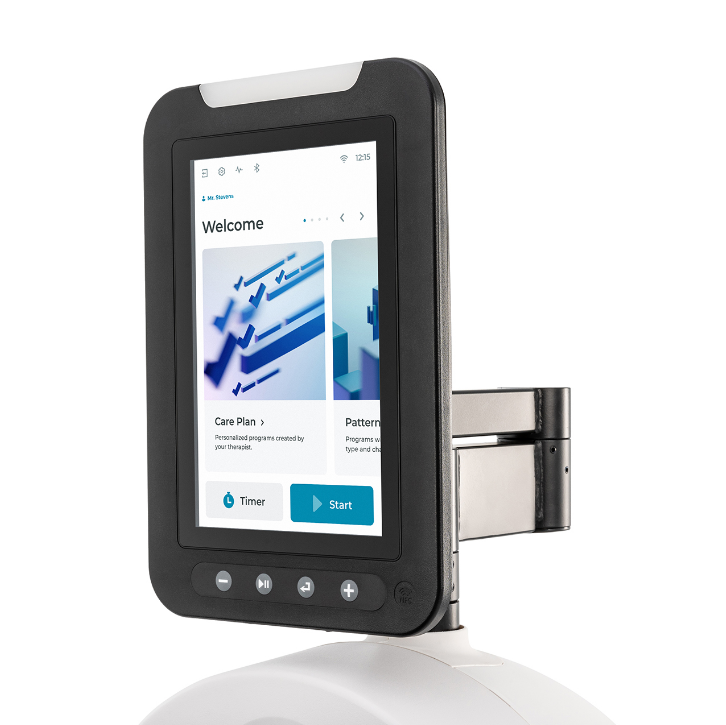

25.5cm (10") Touch Screen console with multi-connectivity protocols and cloud analytics including hardwired connections for data streaming to PC's and links to external devices like Dyaco's Insight Cardiac Stress Testing System. On top of the console is a Beacon that shows a visual cue to patients development.
Programmes
- Manual
- Time Programme
- Symmetry - This programme is designed to assess and quantify the balance of power between the left and right leg throughout the rotation. This programme delivers both a graphic and numeric representation of leg power symmetry.
- Wingate Test Programme - The industry standard for evaluating power output and fatigue rates during anaerobic assessments.
- Power Distribution Programme - The programme offers a visual representation of power distribution in Watts throughout the pedal rotation, providing valuable insights into the patients performance. ( 3 x Power Programmes Isokinetic, Watt Control, Constant Resistance)
- Hill
- Plateau
- HIIT
- Facility
- Heart Rate Target
- Calories Target
- MET's Target
- Steps Target
- Steep Ramp
- Conconi Test
Feedback
- Multiple feedback data covering all workout information and more
- Comm.Port - NFC (for Log In)
- Comm.Port - RS232 (for Cardiac Stress Test)
- Comm.Port - USB Type B (for Cardiac Stress Test and Data transfer)
Technical Specifications
- Power Requirements: All major voltage configurations
- Fully adjustable and removable seat for easy wheelchair access
- Adjustable Crank Arm Length
- Arm Height Adjustment
- Rotating hand grips that follow the natural movements of the user
- 1-50 Resistance Levels
- 5-1000 Watt Workload Range
- Max User Weight 31.5 Stone (200 kg)
-
Warranty- 2 Years Parts and Labour,
